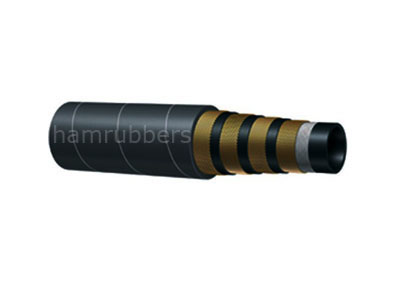

SAE 100R12 Wire Spiral Hydraulic Hose
Description:
Inner Tube: oil resistant synthetic rubber
Reinforcement: four high tensile steel wire spiral
Cover: oil, abrasion and weather resistant synthetic rubber
Temperature Range: -40°C to +121°C
Applications: Very high pressure applications used for petroleum based hydraulic fluids.
|
DN |
Hose ID |
Wire OD |
Hose OD |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
|||
|
inch |
mm |
mm |
mm |
Mpa |
Psi |
Mpa |
Psi |
mm |
Kg/m |
|
|
10 |
3/8 |
9.5 |
17.2 |
20.3 |
28.0 |
4060 |
112 |
16240 |
125 |
0.70 |
|
13 |
1/2 |
12.7 |
20.7 |
23.8 |
28.0 |
4060 |
112 |
16240 |
180 |
0.84 |
|
16 |
5/8 |
15.9 |
24.6 |
27.4 |
28.0 |
4060 |
112 |
16240 |
200 |
1.10 |
|
19 |
3/4 |
19.0 |
27.7 |
30.7 |
28.0 |
4060 |
112 |
16240 |
240 |
1.43 |
|
25 |
1 |
25.4 |
34.9 |
38.0 |
28.0 |
4060 |
112 |
16240 |
300 |
2.00 |
|
32 |
1-1/4 |
31.8 |
43.9 |
47.0 |
21.0 |
3045 |
84 |
12180 |
420 |
2.80 |
|
38 |
1-1/2 |
38.1 |
50.4 |
53.5 |
17.5 |
2540 |
70 |
10150 |
500 |
3.24 |
|
51 |
2 |
50.8 |
63.7 |
66.7 |
17.5 |
2540 |
70 |
10150 |
630 |
4.5 |
Qingdao Haianmei Rubbers Co., Ltd is a professional manufacturer of SAE 100R12 Wire Spiral Hydraulic Hose in china.
